In the era of energy optimization and environmental compliance, the demand for electric furnaces has soared across industries. As a premier electric furnace manufacturer India, Maan Global Industries delivers a comprehensive range of technically advanced, customizable electric furnace systems for industrial applications such as heat treatment, forging, sintering, and laboratory-scale research. These furnaces are designed to ensure optimal temperature uniformity, rapid heating rates, precise digital control, and long operational life with minimal maintenance. Maan Global Industries is among top 10 electric furnace manufacturing companies in India.
What is an Electric Furnace?
Table of Contents
An electric furnace is a heating device that uses electrical resistance or induction to generate and maintain high temperatures required for thermal processing of metals, ceramics, glass, composites, and polymers. Unlike gas-fired or oil-based furnaces, electric models offer:
-
Cleaner operation (zero combustion gases)
-
Lower emissions
-
Finer temperature control
-
Superior energy-to-heat conversion efficiency (up to 85–90%)
Why Choose an Electric Furnace?
-
Precise Temperature Control: Digital PID and PLC-based control with ±3°C accuracy
-
No Flue Emissions: Environmentally compliant with green manufacturing policies
-
Low Operating Cost (in clean energy zones): Especially with solar or wind energy integration
-
Silent Operation: No burners or blowers required
-
Compact & Modular: Easier to install and relocate than conventional furnaces
Types of Electric Furnaces Manufactured by Maan Global Industries
1. Box-Type Electric Furnace
-
Temp Range: 300°C – 1250°C
-
Construction: Refractory-insulated chamber with NiCr or Kanthal heating elements
-
Applications: Tool steel hardening, stress relief, die tempering
2. Muffle Electric Furnace
-
Temp Range: Up to 1150°C
-
Features: Isolated muffle tube prevents direct exposure to heating coils
-
Applications: Laboratory sintering, ceramics, powder metallurgy
3. Pit-Type Electric Furnace
-
Design: Vertical loading for long parts like shafts and rods
-
Applications: Nitriding, tempering, deep-case carburizing
4. Bell-Type Electric Furnace
-
Design: Detachable bell over stationary base; modular operations
-
Applications: Wire coil annealing, fastener heat treatment
5. Vacuum Electric Furnace
-
Temp Range: 400°C – 1350°C
-
Features: Graphite/MoSi2 heating in vacuum or inert backfill
-
Applications: Titanium & Inconel alloy treatment, sintering, brazing

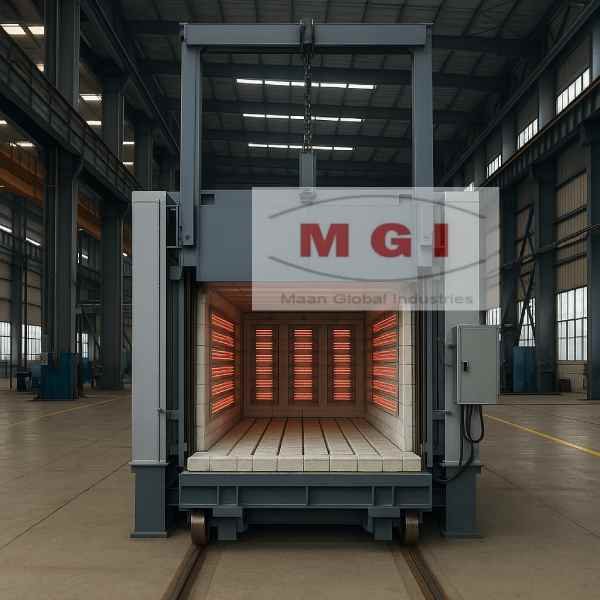

6. Chamber-Type Furnace with Load Trolley
-
Design: Horizontal chamber with automatic loading bogie
-
Applications: Heat treatment of large components
7. Conveyor-Type Electric Furnace
-
Temp Range: 100°C – 950°C
-
Mechanism: Continuous belt system with multi-zone heating
-
Applications: High-throughput production of fasteners, electronics
8. Melting Furnace (Electric Crucible Type)
-
Capacity: 100 kg to 3 MT
-
Material: Cast iron or silicon carbide crucibles
-
Applications: Non-ferrous melting of aluminum, copper, zinc
Stress Relief Furnace for Boiler Manufacturers
Stress Relief Furnace for Pressure Vessel Manufacturers
Tempering Furnace Manufacturer
Roller Hearth Furnace Manufacturers
Energy Efficient Furnaces for Manufacturing Industry
Bogie Hearth Furnace for Annealing
Industrial Furnaces for Precision Engineering Components
Tempering Furnace for Forged Components
Heating Elements and Insulation Materials
Element Type | Max Temp (°C) | Characteristics | Applications |
---|---|---|---|
NiCr (Nickel-Chrome) | 1150 | Economical, corrosion-resistant | General-purpose box furnaces |
Kanthal A1 | 1300 | Long-life, stable resistance | Heat treatment furnaces |
Silicon Carbide (SiC) | 1500 | Rapid heating, non-oxidizing | High-temp sintering |
MoSi2 (Molybdenum Disilicide) | 1800 | Vacuum-compatible, ultra-high-temp | Aerospace, lab, R&D |
Insulation: Low thermal conductivity ceramic fiber boards, refractory bricks, and multilayer insulation reduce heat loss by 30% over conventional lining systems.
Industrial Applications of Electric Furnaces
Industry | Applications | Furnace Type |
Automotive | Gear hardening, tool annealing | Box, Conveyor, Pit |
Aerospace | Titanium brazing, superalloy aging | Vacuum, Muffle, MoSi2 Furnace |
Foundries | Non-ferrous melting, core drying | Crucible, Chamber |
Pharmaceuticals | Glass ampoule annealing, sterilization | Muffle, Chamber |
Electronics | PCB preheating, component drying | Conveyor, Muffle |
Universities & R&D | Metallurgical research, powder metallurgy | Lab muffle, MoSi2 Furnace |
Energy | Fuel cell and battery component sintering | MoSi2, SiC Furnace |
Control System & Automation
All our electric furnaces come equipped with:
-
Digital PID Controllers
-
PLC + HMI Touchscreens
-
Thermocouple-based zone control (J/K/S/R type)
-
Optional SCADA Interface with Remote Monitoring
-
Data logging, recipe management, and cycle timers
Customization Options
-
Chamber Size (0.5 m³ to 100 m³)
-
Power Rating (3 kW to 250 kW)
-
Door Type: Swing, Vertical Lift, Guillotine
-
Loading: Manual / Bogie / Roller / Pusher
-
Safety Systems: Emergency shutoff, airflow sensors, thermal fuses
-
Certifications: CE, ISO 9001, ATEX (on request)
Energy Efficiency & Green Benefits
-
Up to 90% thermal efficiency with ceramic insulation
-
No need for combustion air or flue stack
-
Compatible with solar PV input or DG backup
-
Smart standby modes for power savings
-
Low noise and zero air pollution in workshops
Deliverables and Documentation
-
Maintenance SOPs, Troubleshooting Guide
-
AMC & Spare Part Kit (Optional)
Contact the Best Electric Furnace Manufacturer
Looking for a reliable electric furnace manufacturer for your heat treatment or melting operation? Maan Global Industries offers proven systems, responsive engineering, and full customization from concept to commissioning.
Email: mail@maanglobalindustries.com
WhatsApp/Call: +91-8882490101
Conclusion
Electric furnaces are the future of clean, consistent, and controllable thermal processing. As a leading electric furnace manufacturer, Maan Global Industries delivers fully integrated, high-precision furnace systems to industries that value efficiency, automation, and low emissions. Whether you’re melting aluminum, sintering ceramic parts, or hardening steel gears, we have the right electric furnace designed and built for you.
Let’s build your furnace — fully electric, zero emission, 100% precision.
