In the world of industrial heat treatment, the tempering process is a critical step for enhancing the durability, toughness, and performance of metal components. As a trusted tempering furnace manufacturer, Maan Global Industries delivers advanced tempering furnace systems tailored to the demanding needs of industries such as automotive, aerospace, tool & die, defense, and heavy engineering.
This article explains the tempering process, outlines the major types of tempering furnace, compares gas fired tempering furnaces and electric tempering furnaces, and provides technical data to help industrial buyers select the right system for their production lines.
What Is the Tempering Process?
Table of Contents
The tempering process is a heat treatment technique used primarily on ferrous metals, such as steel, to reduce brittleness and increase toughness after quenching. This is achieved by heating the material to a temperature below the critical point, typically between 150°C and 700°C, holding it for a specific duration, and then cooling it in air or oil.
Objectives of Tempering:
-
Relieve internal stresses induced by quenching
-
Improve impact resistance and ductility
-
Adjust hardness to optimal levels
-
Enhance fatigue resistance for mechanical components
A reliable tempering furnace manufacturer provides equipment with accurate temperature control and uniform heat distribution to ensure metallurgical consistency.
Types of Tempering Furnace
Modern heat treatment lines use various types of tempering furnace depending on production scale, heating source, and automation level. Below is a breakdown:
| Type of Tempering Furnace | Description | Ideal For |
|---|---|---|
| Batch Type Tempering Furnace | Static chamber furnaces with precise temp control | Low to medium volume, precision tools |
| Continuous Tempering Furnace | Conveyor-type or pusher systems for continuous processing | Automotive, bearings, fasteners |
| Gas Fired Tempering Furnace | Uses LPG/PNG with burners for cost-effective large-scale operations | Large forging units, castings, bars |
| Electric Tempering Furnace | Uses Kanthal or NiCr heaters for clean, precise heating | Aerospace, tools, medical components |
| Bell-Type Tempering Furnace | Vertical lifting hood with base platform – for coils, wires, strips | Annealing and tempering steel coils |
| Pit Type Tempering Furnace | Vertical orientation for long shafts and bars | Crankshafts, tool steels, oilfield rods |
A skilled tempering furnace manufacturer customizes these designs based on material loading, cycle time, and process specifications.

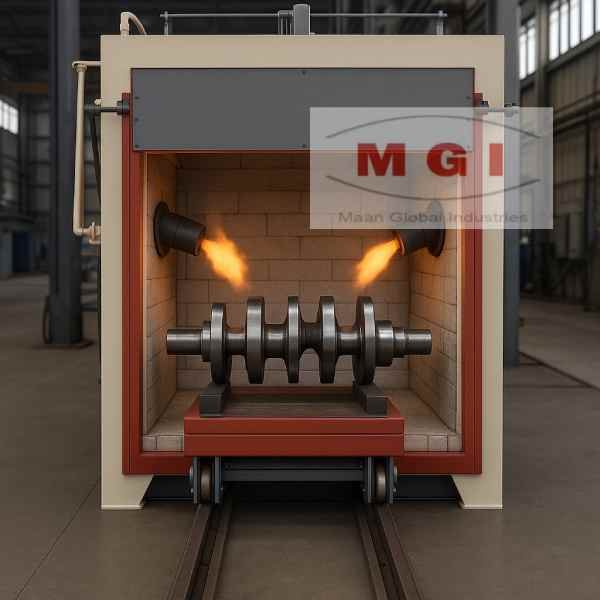

Gas Fired Tempering Furnace
A Gas Fired Tempering Furnace uses clean-burning fuel like LPG or PNG to deliver fast and uniform heating through high-efficiency burners and indirect heat exchangers.
Technical Highlights:
-
Operating temperature: 150°C to 750°C
-
Burner control: On/off or modulating
-
Atmosphere: Air, inert gas (optional)
-
Construction: Refractory brick/ceramic fiber lining
-
Heating rate: Rapid ramp-up, ideal for heavy loads
Key Advantages:
-
Lower operational cost per cycle
-
Suitable for high-volume tempering of castings, forgings, and bars
-
Dual zone heating control for uniformity
-
Can integrate with oil or air cooling stations
Gas systems are widely preferred in India and the Middle East for energy cost efficiency. As a tempering furnace manufacturer, we ensure flame safety systems, O₂ sensors, and combustion monitoring for reliable operation.
Gas Fired Ladle Preheater Manufacturer
Electric Tempering Furnace
An Electric Tempering Furnace utilizes resistance heating elements like Kanthal A1 or NiCr coils to generate precise, controllable heat. These are ideal for cleanroom or low-emission environments.
Technical Highlights:
-
Operating range: 100°C to 750°C
-
Element types: Tubular, coil, or ribbon heaters
-
Controls: PLC-based ramp-soak profile programming
-
Atmosphere control: Inert, vacuum (on request)
-
Cooling options: Air blast or quench pit integration
Key Advantages:
-
Precise temperature control ±5°C
-
Silent, clean, and emission-free
-
Preferred for high-value components
-
Compact installation for lab or shop floor use
Electric tempering furnaces are critical for aerospace parts, surgical instruments, gears, and cutting tools. Leading tempering furnace manufacturers now offer SCADA-enabled electric units with real-time monitoring and remote diagnostics.
Technical Comparison Table
| Parameter | Gas Fired Tempering Furnace | Electric Tempering Furnace |
|---|---|---|
| Heating Source | LPG / PNG / CNG | Resistance heaters (NiCr, Kanthal) |
| Temp Control Accuracy | ±5°C | ±1°C |
| Energy Efficiency | 80–85% | 90–95% |
| Operating Cost | Lower per kg of processed metal | Higher unless solar-integrated |
| Emissions | Low (with combustion control) | Zero emissions |
| Typical Industries | Automotive, Foundry, Forging | Aerospace, Tools, Medical |
| Maintenance | Requires burner maintenance | Low – replaceable heater banks |
Both options are valuable depending on part geometry, batch size, surface finish requirements, and industry standards.
Applications of Tempering Furnaces
| Industry | Typical Components Tempered | Preferred Furnace Type |
|---|---|---|
| Automotive | Gears, crankshafts, suspension parts | Gas Fired / Continuous |
| Aerospace | Landing gear, turbine blades, springs | Electric / Inert atmosphere |
| Tool & Die | Dies, punches, cutting tools | Electric / Batch |
| Oil & Gas | Drill rods, couplings, subs | Pit Type / Gas Fired |
| Fasteners | Screws, bolts, rivets | Conveyor / Continuous |
| Medical Devices | Surgical blades, orthopedic tools | Electric / Cleanroom grade |
Features Offered by Maan Global Industries
As a top-tier tempering furnace manufacturer, our systems include:
-
Chamber sizes: 500mm × 500mm to 5000mm × 3000mm
-
Load capacity: 100 kg to 20 tons
-
Heat zones: Single, dual, or multi-zone
-
SCADA integration & remote monitoring
-
Quench pit, air-cooling, and material handling options
-
Safety systems: Overtemp trip, limit switches, flame-proof panels
-
CE, ISO, and AMS2750E compliant options (for aerospace)
Installation & Support Across India and Gulf
We serve industries in:
-
India – Pune, Mumbai, Nashik, Chennai, Hyderabad
-
Saudi Arabia – Dammam, Riyadh, Jeddah
-
UAE – Dubai, Sharjah, Abu Dhabi
-
Qatar, Oman, Kuwait – EPC and OEM support
-
Africa – Kenya, Ghana, Egypt, South Africa
Our electric and gas-fired tempering systems are shipped ready-to-install with civil layout, GA drawing, wiring diagrams, and SOPs.
Contact the Leading Tempering Furnace Manufacturer
Looking for a precision-engineered gas fired tempering furnace or electric tempering furnace for your factory?
Maan Global Industries is a leading tempering furnace manufacturer with decades of experience designing systems for every tempering process and metallurgical requirement.
